Membrane Keyboard vs Mechanical Keyboard : Which One You Should Use?
There are many ranges of keyboards from many different makers out there, most of whom are either membrane keyboards or mechanical keyboards. Being a gamer and a typist I used many different keyboards over the years, all with their different benefits or downfalls. Some feel good on my hands, others not so. When you do a lot of work or a lot of gaming, you want something that will perform well to your fingers. Now not all keyboards are made the same granted that some are made better than others even if they are similar. Today we will compare the membrane keyboard and mechanical keyboard, and provide recommendations about who should use membrane keyboard and who should use mechanical keyboard.
What is a Membrane Keyboard
Let's get down to business with the first type of keyboard called a membrane, it uses 3 different layers in it design, which are very flexible. The first layer is called the top membrane layer, under the top there is a conductive trace. When the key is pressed, it moves thru the second layer which is made up of holes, allowing the pressure pads that are located under each key to pass through, and make contact with the conductive traces on top of the bottom membrane layer.
There are two types of designs that are used. One is the flat key design, which is commonly used on microwave ovens. The keys in this design are printed on the same pad, It still uses an pressure pad, but because it provides no notable "physical feedback", it makes it hard to use on a computer keyboard, which typist rely on physical feedbacks to blink type.
The other type called dome switch keyboard, which uses a dome with printed letters on top, sometimes they are printed on or laser stretched. This type of keyboard uses a rubber or a silicone keypad that comes with domes as the top membrane layer. When the domes being press down, they collapse, and the graphite under the dome will complete the circuit underneath the membrane pad, thereby sent signal of a key being pressed.
Pros of Membrane Keyboards
Similar typing experience to mechanical keyboard
The dome switch keyboard uses rubber or silicone domes to simulate the spring structure of mechanical keyboard, which gives this type of keyboard solid physical feedbacks. Although there is difference between the typing experience of membrane keyboard and those of mechanical keyboard, with the advance of technology, the gap between them is getting smaller.
While typing on any keyboard with a high speed can be loud, membrane keyboard have better reputation than mechanical keyboards when it comes to typing sound volume. Some mechanical keyboard, especially the blue switches, can be very loud, although it may not be a bad thing as some typists enjoy this sound.
Membrane keyboards usually are usually made of plastic, making it lighter than mechanical keyboard, which has a larger proposition of metal gears. You can easily carry a light membrane keyboard and type on your lap if you want to.
As membrane keyboards can be made with common materials and matured technology, a membrane keyboard will be more affordable than a mechanical keyboard that comes with the same features.
Cons of Membrane Keyboards
The keys require more of an effort to type, when you press down on the key. Some typists found that membrane keyboards are "mushy" to type on, which affect their typing experience.
If you're a fast typist there will be times when you're typing that the keys will not be registered as a hit as the key wasn't pressed down all the way. This happens to me all the time.
Though having a lifespan of millions of key presses and lasts for years, the membrane keyboard can still wear out quicker than a mechanical keyboard, when they do wear out the membrane will start to feel more mushy which causes the keys to loose feedback.
While you can take away keycaps of mechanical keyboards to clean the keyboard, it is harder to clean a membrane keyboard as the keycaps are usually not removable.
What is a mechanical keyboard

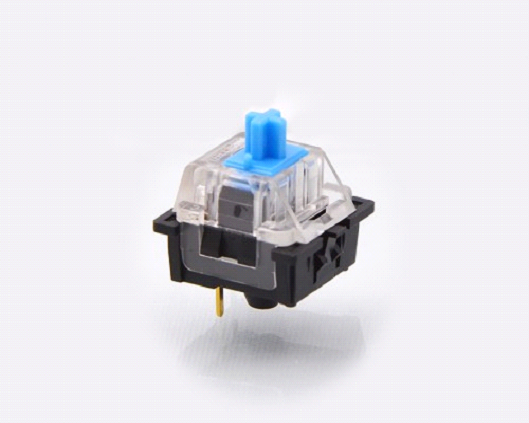

The mechanical keyboards use switches to send typing signal. There are more than one kind of switches out there, each one performing differently. Each key has its own switch, which comes with a base, a spring and a stem. The most common switches are blue, red, brown, black etc. Some require a certain amount of force to be press, Tactile while making a clicking sound or without, and others can be easy to press. Mechanical keyboard usually provides exchangeable keycaps, which allow users to DIY their keyboard. For more details about the definition of mechanical keyboard and membrane keyboards, please visit Wikipedia.
Pros of mechanical keyboards
The key caps can be removed which allow you to customized your keyboard to match the theme of your case, your desktop or give a style's look to your keyboard.
Since there isn't a membrane inside the mechanical they take a longer time than membrane keyboards to wear out. Plus they stay the same since day one and do not change feedback. Meaning you do not have to get used to the keyboard again if the feel changes unlike membrane keyboards.
Typist benefit from the keys as so, when you type the letter is registered and it does not require a lot of effort to type, which is great for those who are fast typist including gamers, who need to hit one or more then quickly or often.
Different Typing Style
With mechanical keyboard, you don't have to press a key all the way down to the bottom to make it register, which means you can press half way and stop. This allows faster typing speed and less fatigue.
The weight of mechanical keyboard can be either a pro or a con, depending on how you use it. Mechanical keyboards tend to be heavy which helps by stopping the keyboard from being pushed around your desk when you type.
Mechanical keyboard usually allows you to press many keys at the same time; some even allows you to press all keys at the same time (N key rollover). This will benefit those who games with the keyboard.
Easier to Clean
As the keycaps of mechanical keyboard can be removed, you can clean a mechanical keyboard easily by removing the keycaps.
Cons of mechanical keyboards
Mechanical keyboards use more expensive materials and technology, so you will need to spend more than you normally would for a membrane to get one.
The sound volume of mechanical keyboard depends on the switches that are used, such as blues as they can be loud. So if you're in a location with other people, they will hear you typing away, unless you have the door closed, or if you're talking on a mic. Again, some typists don't mind the sound and even enjoy them.
Weight while this is a pro for some people, this can be a con for others those who move their keyboards around while its traveling or move from different desktops.
DIY skills may required
While mechanical keyboards can be used out of the box, it will be also fun to customize it with different keycaps and switches. However, customizing it may require some DIY skills.
Which one you should use?
As you see both keyboards have their ups and downs, and each one meets the different needs of many users. Not one keyboard is for everyone. If you're on an budget and doesn't care about how the keyboard perform or using this with an laptop on the go, use with something as simple as an tablet, use with your home theater PC, or in your home office working and talking on the phone a lot with your job, traveling an lot etc., then a quiet membrane keyboard would be good enough for you, as you won't have to worry about the size and the weight of the keyboard. Students will benefit from the flexibility of a high quality membrane keyboard, as it can be used to write assignment or game, and is much affordable.
Now if you are a heavy user who uses the keyboard all the time, typing out a story, articles, coding or even a fast typist, a mechanical keyboard would be a very good choice for you. Even gamers will benefit from using one with their gaming due to the quickness that is required at times. The weight will be handy as the last thing you want your keyboard to do is movie around on your desk as you try to frag another player with a rocket launcher, causing you to mistakenly strafe into a wall and shoot yourself in the face. There are ways to make the mechanical quieter by using O-rings if you wish to still use one in the home office, so that still an option, even outside the office.
The best thing you should is find an place that will let you try out the different keyboards and find one that fit your needs, as that's what important, to find out what works best in your fingers. And you can also figure out which mechanical switches that you feel work best for you.
